12 and 24 Volt Output, Rainproof Enclosure

  • Two Compact Enclosures Handle All Models
  • Wiring Provided for Three Output Voltages-11.5, 12, 13.5 or 23, 24, 25 for 24V Models
  • Circuit Breaker Protected on Each Output Winding

Designed Exclusively For Connection To:

  1. Light-Emitting Diodes Providing Illumination (LED Lamps, Strips or Tape)
  2. Organic Light-Emitting Diodes Providing Illumination

Features:

  • UL Listed (Link to UL Certification)
  • 120 Volts, 50/60HZ Reduced To 12V or 24V With Outputs From 100VA to 1000VA
  • Automatic Resetting Protector in Primary Windings
  • Potted Core and Coil for Cool, Quiet Operation
  • Low Voltage Re-Settable Supplementary Protector.
  • Supplied Protectors Service BOTH 12V AND 24V OUTPUTS on Models GP500 – GP1000
  • All GP series transformer inputs are suitable for connection to dimmers specifically designed for use with magnetic or inductive circuits. TESTED EXAMPLE: Lutron Corporation Model NLV-1000 Low Voltage Dimmer.
  • Made in U.S.A.

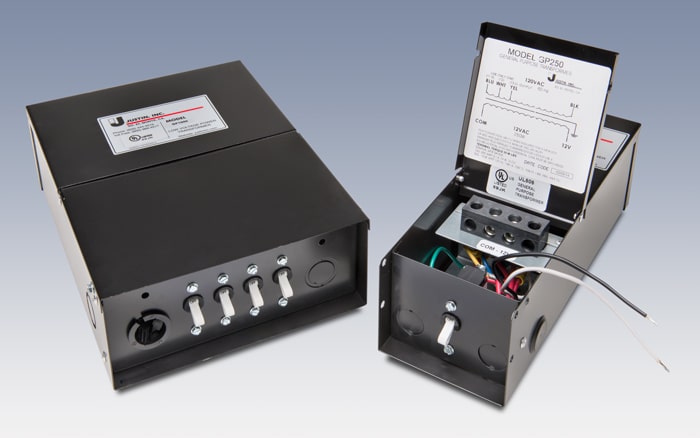

GP1000_250_700x438

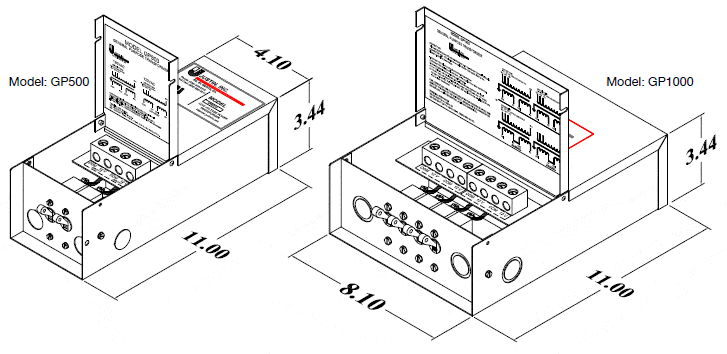

General Purpose Step Down Transformer Lineart

Specifications and Ordering Information
General Purpose Step-Down Transformers
MODEL NUMBER DESCRIPTION DIMENSIONS WEIGHT EACH
GP100 120V .92 A 50/60 HZ to 12VAC 100VA – 1 Circuit 11″H x 4″W x 4″D 6 LB.
GP100-24 120V .92 A 50/60 HZ to 24VAC 100VA – 1 Circuit 11″H x 4″W x 4″D 6 LB.
GP250 120V 2.3A 50/60 HZ to 12VAC, 250VA – 1 Circuit 11″H x 4″W x 4″D 12 LB.
GP250-24 120V 2.3A 50/60 HZ to 24VAC, 250VA – 1 Circuit 11″H x 4″W x 4″D 12 LB.
GP500 120V 4.6A 50/60 HZ to 12VAC, 250VA x 2 Circuit to 24VAC, 500VA x 1 Circuit 11″H x 4″W x 4″D 14 Lb.
GP1000 120V 9.2A 50/60 HZ to 12VAC, 250VA x 4 Circuit to 24VAC, 500VA x 2 Circuit 11″H x 8″W x 4″D 28 LB.
Input Voltages of 208, 240, or 277 are Available…Order “-208”, “-240”, or “-277”.
For input line cord…Order “-LC”.


Models and Specifications Subject to Change Without Notice
